D Type
expansion joints
Installation, details, options

For a larger view, please mouseover the image.

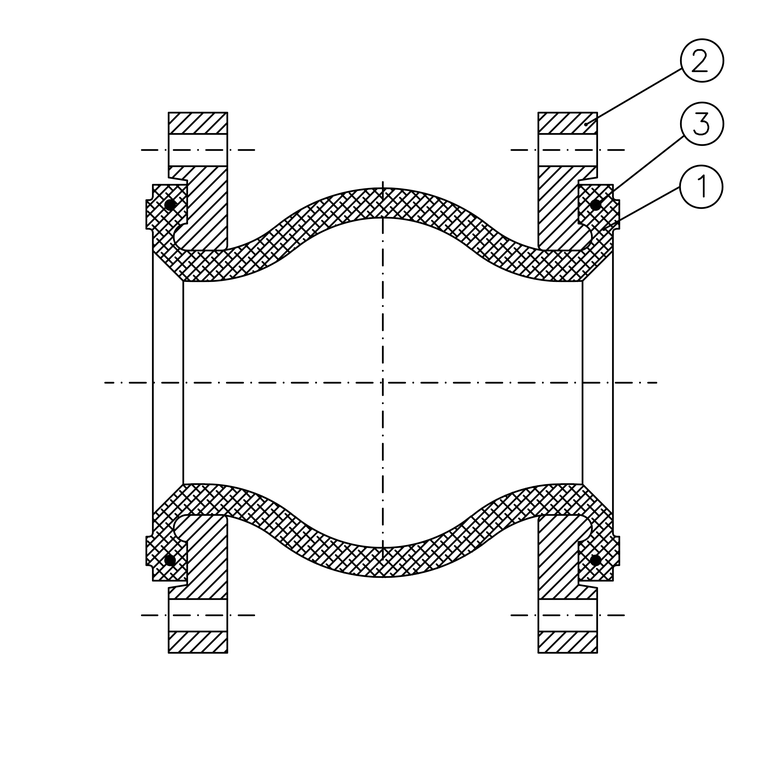

D type without tie rods

Item Designation
1 Rubber bellows
2 Flanges
3 Reinforcement ring
For a larger view, please mouseover the image.

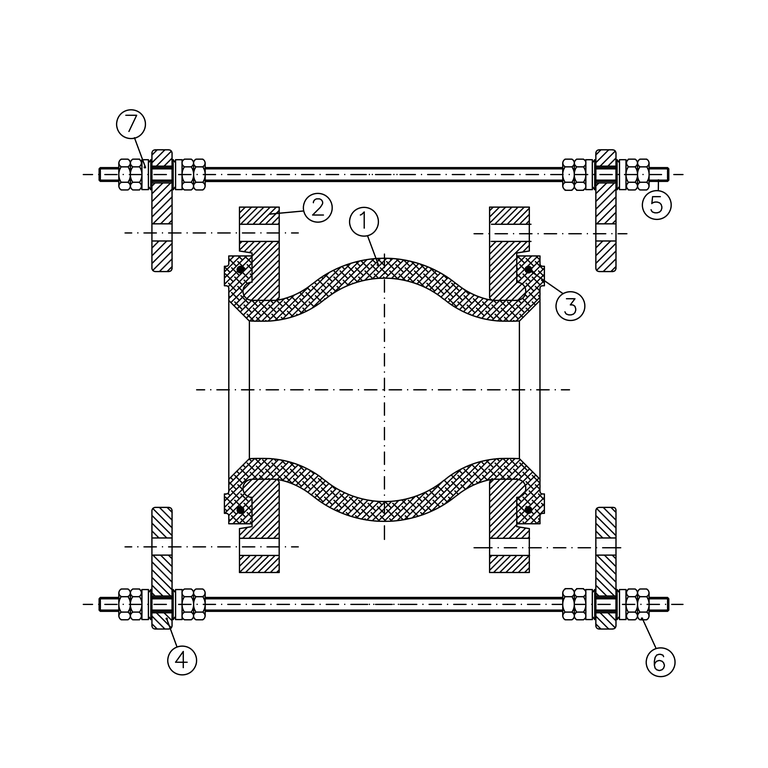

D type with tie rods

Item Designation
1 Rubber bellows
2 Flanges
3 Reinforcement ring
4 Loose brackets
5 Tie rods
6 Nuts
7 Spherical washers
