H7N

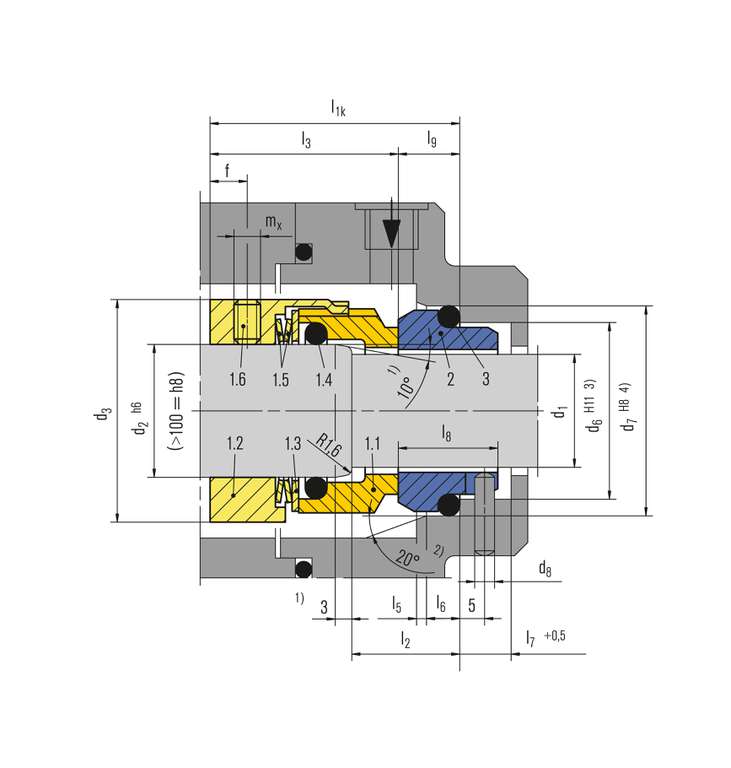

Maße
| d1 | d2 | d3 | d6 | d7 | d8 | d24 | d21 | d22 | ds | l1K | l1N | l2 | l3 | l5 | l6 | l7 | l8 | l9 | l39 | l40 | A | b | e | f | h1 | h2 | k | mx | umax. | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14* | 18 | 33 | 21,0 | 25,0 | 3 | 20 | – | – | 38 | 42,5 | – | 18 | 32,5 | 1,5 | 4 | 8,5 | 17,5 | 10,0 | – | – | – | 5 | – | 6,0 | – | – | – | M5 | 9 | 1,1 |
| 16* | 20 | 35 | 23,0 | 27,0 | 3 | 22 | – | – | 40 | 42,5 | – | 18 | 32,5 | 1,5 | 4 | 8,5 | 17,5 | 10,0 | – | – | – | 5 | – | 6,0 | – | – | – | M5 | 9 | 1,1 |
| 18* | 22 | 37 | 27,0 | 33,0 | 3 | 24 | – | – | 42 | 45,0 | 55 | 20 | 33,5 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | – | – | – | 6 | – | 7,0 | – | – | – | M5 | 9 | 1,5 |
| 20* | 24 | 39 | 29,0 | 35,0 | 3 | 26 | – | – | 44 | 45,0 | 60 | 20 | 33,5 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | – | – | – | 6 | – | 5,5 | – | – | – | M5 | 9 | 1,5 |
| 22* | 26 | 41 | 31,0 | 37,0 | 3 | 28 | – | – | 45 | 45,0 | 60 | 20 | 33,5 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | – | – | – | 6 | – | 8,0 | – | – | – | M5 | 9 | 1,5 |
| 24* | 28 | 43 | 33,0 | 39,0 | 3 | 30 | – | – | 47 | 47,5 | 60 | 20 | 36,0 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | – | – | – | 6 | – | 5,5 | – | – | – | M6 | 9 | 1,5 |
| 25* | 30 | 45 | 34,0 | 40,0 | 3 | 32 | – | – | 49 | 47,5 | 60 | 20 | 36,0 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | – | – | – | 6 | – | 5,5 | – | – | – | M6 | 9 | 1,5 |
| 28* | 33 | 48 | 37,0 | 43,0 | 3 | 35 | 44,65 | 50,57 | 51 | 50,0 | 65 | 20 | 38,5 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | 24,0 | 8,5 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 30* | 35 | 50 | 39,0 | 45,0 | 3 | 37 | 47,83 | 53,75 | 54 | 50,0 | 65 | 20 | 38,5 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | 24,5 | 9,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 32* | 38 | 55 | 42,0 | 48,0 | 3 | 40 | 47,83 | 53,75 | 59 | 50,0 | 65 | 20 | 38,5 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | 24,5 | 9,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 33* | 38 | 55 | 42,0 | 48,0 | 3 | 40 | 47,83 | 53,75 | 59 | 50,0 | 65 | 20 | 38,5 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | 24,5 | 9,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 35* | 40 | 57 | 44,0 | 50,0 | 3 | 42 | 51,00 | 56,92 | 61 | 50,0 | 65 | 20 | 38,5 | 2,0 | 5 | 9,0 | 19,5 | 11,5 | 24,5 | 9,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 38* | 43 | 60 | 49,0 | 56,0 | 4 | 45 | 54,18 | 60,10 | 65 | 52,5 | 75 | 23 | 38,5 | 2,0 | 6 | 9,0 | 22,0 | 14,0 | 26,0 | 11,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 40* | 45 | 62 | 51,0 | 58,0 | 4 | 47 | 60,53 | 66,45 | 66 | 52,5 | 75 | 23 | 38,5 | 2,0 | 6 | 9,0 | 22,0 | 14,0 | 26,0 | 11,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 43* | 48 | 65 | 54,0 | 61,0 | 4 | 50 | 63,70 | 69,62 | 69 | 52,5 | 75 | 23 | 38,5 | 2,0 | 6 | 9,0 | 22,0 | 14,0 | 26,0 | 11,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 45* | 50 | 67 | 56,0 | 63,0 | 4 | 52 | 63,70 | 69,62 | 71 | 52,5 | 75 | 23 | 38,5 | 2,0 | 6 | 9,0 | 22,0 | 14,0 | 26,0 | 11,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 48* | 53 | 70 | 59,0 | 66,0 | 4 | 55 | 66,88 | 72,80 | 75 | 52,5 | 85 | 23 | 38,5 | 2,0 | 6 | 9,0 | 22,0 | 14,0 | 26,0 | 11,0 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 50* | 55 | 72 | 62,0 | 70,0 | 4 | 57 | 70,05 | 75,97 | 76 | 57,5 | 85 | 25 | 42,5 | 2,5 | 6 | 9,0 | 23,0 | 15,0 | 26,5 | 12,5 | 24,0 | 6 | 8,0 | 8,0 | 6,6 | 22,6 | 9 | M6 | 12 | 1,5 |
| 53* | 58 | 79 | 65,0 | 73,0 | 4 | 60 | 76,40 | 82,32 | 83 | 57,5 | 85 | 25 | 42,5 | 2,5 | 6 | 9,0 | 23,0 | 15,0 | 26,5 | 12,5 | 24,0 | 8 | 8,0 | 9,0 | 6,6 | 22,6 | 9 | M8 | 12 | 1,9 |
| 55* | 60 | 81 | 67,0 | 75,0 | 4 | 62 | 76,40 | 82,32 | 85 | 57,5 | 85 | 25 | 42,5 | 2,5 | 6 | 9,0 | 23,0 | 15,0 | 28,5 | 12,5 | 26,0 | 8 | 8,0 | 9,0 | 6,6 | 24,6 | 11 | M8 | 12 | 1,9 |
| 58* | 63 | 84 | 70,0 | 78,0 | 4 | 65 | 79,58 | 85,50 | 88 | 62,5 | 85 | 25 | 47,5 | 2,5 | 6 | 9,0 | 23,0 | 15,0 | 28,5 | 12,5 | 26,0 | 8 | 8,0 | 9,0 | 6,6 | 24,6 | 11 | M8 | 15 | 1,9 |
| 60* | 65 | 86 | 72,0 | 80,0 | 4 | 67 | 82,75 | 88,67 | 95 | 62,5 | 95 | 25 | 47,5 | 2,5 | 6 | 9,0 | 23,0 | 15,0 | 28,5 | 12,5 | 26,0 | 8 | 8,0 | 9,0 | 6,6 | 24,6 | 11 | M8 | 15 | 1,9 |
| 63* | 68 | 89 | 75,0 | 83,0 | 4 | 70 | 85,93 | 91,85 | 93 | 62,5 | 95 | 25 | 47,5 | 2,5 | 6 | 9,0 | 23,0 | 15,0 | 28,5 | 12,5 | 26,0 | 8 | 8,0 | 9,0 | 6,6 | 24,6 | 11 | M8 | 14 | 1,9 |
| 65* | 70 | 91 | 77,0 | 85,0 | 4 | 72 | 85,93 | 91,85 | 95 | 62,5 | 95 | 25 | 47,5 | 2,5 | 6 | 9,0 | 23,0 | 15,0 | 28,5 | 12,5 | 26,0 | 8 | 8,0 | 9,0 | 6,6 | 24,6 | 11 | M8 | 15 | 1,9 |
| 70* | 75 | 99 | 83,0 | 92,0 | 4 | 77 | 89,10 | 95,02 | 105 | 70,0 | 95 | 28 | 52,0 | 2,5 | 7 | 9,0 | 26,0 | 18,0 | 30,5 | 14,5 | 26,0 | 8 | 8,0 | 10,0 | 6,6 | 24,6 | 11 | M8 | 15 | 1,9 |
| 75* | 80 | 104 | 88,0 | 97,0 | 4 | 82 | 98,63 | 104,55 | 109 | 70,0 | 105 | 28 | 52,0 | 2,5 | 7 | 9,0 | 26,0 | 18,0 | 30,5 | 14,5 | 26,0 | 8 | 8,0 | 10,0 | 6,6 | 24,6 | 11 | M8 | 15 | 1,9 |
| 80* | 85 | 109 | 95,0 | 105,0 | 4 | 87 | 101,80 | 107,72 | 114 | 70,0 | 105 | 28 | 51,8 | 3,0 | 7 | 9,0 | 26,2 | 18,2 | 30,2 | 14,0 | 26,0 | 8 | 8,0 | 10,0 | 6,6 | 24,6 | 11 | M8 | 15 | 1,9 |
| 85* | 90 | 114 | 100,0 | 110,0 | 4 | 92 | 108,15 | 114,07 | 119 | 75,0 | 105 | 28 | 56,8 | 3,0 | 7 | 9,0 | 26,2 | 18,2 | 30,2 | 14,0 | 26,0 | 10 | 8,0 | 10,0 | 6,6 | 24,6 | 11 | M8 | 18 | 2,3 |
| 90* | 95 | 119 | 105,0 | 115,0 | 4 | 97 | 114,50 | 120,42 | 124 | 75,0 | 105 | 28 | 56,8 | 3,0 | 7 | 9,0 | 26,2 | 18,2 | 30,2 | 14,0 | 26,0 | 10 | 8,0 | 10,0 | 6,6 | 24,6 | 11 | M8 | 18 | 2,3 |
| 95* | 100 | 124 | 110,0 | 120,0 | 4 | 102 | 117,68 | 123,60 | 129 | 75,0 | 105 | 28 | 57,8 | 3,0 | 7 | 9,0 | 25,2 | 17,2 | 29,2 | 14,0 | 26,0 | 10 | 8,0 | 10,0 | 6,6 | 24,6 | 11 | M8 | 18 | 2,3 |
| 100* | 105 | 129 | 115,0 | 125,0 | 4 | 107 | 124,03 | 129,95 | 134 | 75,0 | 105 | 28 | 57,8 | 3,0 | 7 | 9,0 | 25,2 | 17,2 | 29,2 | 14,0 | 26,0 | 10 | 8,0 | 10,0 | 6,6 | 24,6 | 11 | M8 | 18 | 2,3 |
| 105* | 115 | 148 | 122,2 | 134,3 | 5 | 118 | 128,98 | 134,90 | 153 | 73,0 | – | 32 | 53,0 | 2,0 | 10 | – | 30,0 | 20,0 | 29,2 | 15,2 | 26,0 | 10 | 8,0 | 10,0 | 6,6 | 24,6 | 11 | M8 | 18 | 2,3 |
| 110* | 120 | 153 | 128,2 | 140,3 | 5 | 123 | 135,30 | 141,20 | 158 | 73,0 | – | 32 | 53,0 | 2,0 | 10 | – | 30,0 | 20,0 | 32,5 | 14,5 | 30,0 | 10 | 9,5 | 10,0 | 6,6 | 28,6 | 13 | M8 | 18 | 2,3 |
| 115* | 125 | 158 | 136,2 | 148,3 | 5 | 128 | 140,30 | 146,20 | 163 | 73,0 | – | 32 | 53,0 | 2,0 | 10 | – | 30,0 | 20,0 | 32,5 | 14,5 | 30,0 | 10 | 9,5 | 10,0 | 6,6 | 28,6 | 13 | M8 | 18 | 2,3 |
| 120* | 130 | 163 | 138,2 | 150,3 | 5 | 133 | 145,30 | 151,20 | 168 | 73,0 | – | 32 | 53,0 | 2,0 | 10 | – | 30,0 | 20,0 | 32,5 | 14,5 | 30,0 | 10 | 9,5 | 10,0 | 6,6 | 28,6 | 13 | M8 | 18 | 2,3 |
| 125* | 135 | 168 | 142,2 | 154,3 | 5 | 138 | 150,30 | 156,20 | 173 | 73,0 | – | 32 | 53,0 | 2,0 | 10 | – | 30,0 | 20,0 | 32,5 | 14,5 | 30,0 | 10 | 9,5 | 10,0 | 6,6 | 28,6 | 13 | M8 | 18 | 2,3 |
| 130* | 140 | 173 | 146,2 | 158,3 | 5 | 143 | 155,30 | 161,20 | 178 | 73,0 | – | 32 | 53,0 | 2,0 | 10 | – | 30,0 | 20,0 | 32,5 | 14,5 | 30,0 | 10 | 9,5 | 10,0 | 6,6 | 28,6 | 13 | M8 | 18 | 2,3 |
| 135* | 145 | 178 | 152,2 | 164,3 | 5 | 148 | 160,30 | 166,20 | 183 | 73,0 | – | 32 | 53,0 | 2,0 | 10 | – | 30,0 | 20,0 | 32,5 | 14,5 | 30,0 | 10 | 9,5 | 10,0 | 6,6 | 28,6 | 13 | M8 | 18 | 2,3 |
| 140* | 150 | 183 | 156,2 | 168,3 | 5 | 153 | 165,30 | 171,20 | 188 | 73,0 | – | 32 | 53,0 | 2,0 | 10 | – | 30,0 | 20,0 | 32,5 | 14,5 | 30,0 | 10 | 9,5 | 10,0 | 6,6 | 28,6 | 13 | M8 | 18 | 2,3 |
| 145* | 155 | 191 | 161,2 | 173,3 | 5 | 158 | 172,30 | 178,20 | 196 | 83,0 | – | 34 | 63,0 | 2,0 | 10 | – | 30,0 | 20,0 | 34,5 | 16,5 | 32,0 | 12 | 10,0 | 12,0 | 7,1 | 30,1 | 14 | M8 | 22 | 2,1 |
| 150* | 160 | 196 | 168,2 | 180,3 | 5 | 163 | 177,30 | 183,20 | 201 | 85,0 | – | 36 | 63,0 | 2,0 | 10 | – | 32,0 | 22,0 | 34,5 | 16,5 | 32,0 | 12 | 10,0 | 12,0 | 7,1 | 30,1 | 14 | M8 | 22 | 2,1 |
| 155* | 165 | 201 | 173,2 | 185,3 | 5 | 168 | 182,30 | 188,20 | 206 | 87,0 | – | 38 | 63,0 | 2,0 | 12 | – | 34,0 | 24,0 | 34,5 | 16,5 | 32,0 | 12 | 10,0 | 12,0 | 7,1 | 30,1 | 14 | M8 | 22 | 2,1 |
| 160* | 170 | 206 | 178,2 | 190,3 | 5 | 173 | 187,30 | 193,20 | 211 | 87,0 | – | 38 | 63,0 | 2,0 | 12 | – | 34,0 | 24,0 | 34,5 | 16,5 | 32,0 | 12 | 10,0 | 12,0 | 7,1 | 30,1 | 14 | M8 | 22 | 2,1 |
| 165* | 175 | 211 | 183,2 | 195,3 | 5 | 178 | 192,30 | 198,20 | 216 | 87,0 | – | 38 | 63,0 | 2,0 | 12 | – | 34,0 | 24,0 | 34,5 | 16,5 | 32,0 | 12 | 10,0 | 12,0 | 7,1 | 30,1 | 14 | M8 | 22 | 2,1 |
| 170* | 180 | 216 | 188,2 | 200,3 | 5 | 183 | 197,30 | 203,20 | 221 | 87,0 | – | 38 | 63,0 | 2,0 | 12 | – | 34,0 | 24,0 | 37,0 | 16,5 | 34,5 | 12 | 10,0 | 12,0 | 7,1 | 32,1 | 16 | M8 | 22 | 2,1 |
| 175* | 185 | 221 | 193,2 | 205,3 | 5 | 188 | 202,30 | 208,20 | 226 | 87,0 | – | 38 | 63,0 | 2,0 | 12 | – | 34,0 | 24,0 | 37,0 | 16,5 | 34,5 | 12 | 10,0 | 12,0 | 7,1 | 32,1 | 16 | M8 | 22 | 2,1 |
| 180* | 190 | 226 | 207,5 | 219,3 | 5 | 193 | 207,30 | 213,20 | 231 | 91,0 | – | 42 | 63,0 | 2,0 | 12 | – | 38,0 | 28,0 | 37,0 | 16,5 | 34,5 | 12 | 10,0 | 12,0 | 7,1 | 32,1 | 16 | M8 | 22 | 2,1 |
| 185* | 195 | 231 | 212,5 | 224,3 | 5 | 198 | 212,30 | 218,20 | 236 | 91,0 | – | 42 | 63,0 | 2,0 | 12 | – | 38,0 | 28,0 | 37,0 | 16,5 | 34,5 | 12 | 10,0 | 12,0 | 7,1 | 32,1 | 16 | M8 | 22 | 2,1 |
| 190* | 200 | 236 | 217,5 | 229,3 | 5 | 203 | 217,30 | 223,20 | 241 | 91,0 | – | 42 | 63,0 | 2,0 | 12 | – | 38,0 | 28,0 | 37,0 | 16,5 | 34,5 | 12 | 10,0 | 12,0 | 7,1 | 32,1 | 16 | M8 | 22 | 2,1 |
| 195* | 205 | 245 | 222,5 | 234,2 | 5 | 208 | 225,30 | 231,20 | 250 | 94,0 | – | 43 | 66,0 | 2,0 | 12 | – | 38,0 | 28,0 | 37,0 | 17,5 | 34,5 | 12 | 10,0 | 14,0 | 7,1 | 32,1 | 16 | M10 | 22 | 2,1 |
| 200* | 210 | 250 | 227,5 | 239,3 | 5 | 213 | 230,30 | 236,20 | 255 | 94,0 | – | 43 | 66,0 | 2,0 | 12 | – | 38,0 | 28,0 | 37,0 | 17,5 | 34,5 | 12 | 10,0 | 14,0 | 7,1 | 32,1 | 16 | M10 | 22 | 2,1 |
Maße in Millimeter
* EN 12756
