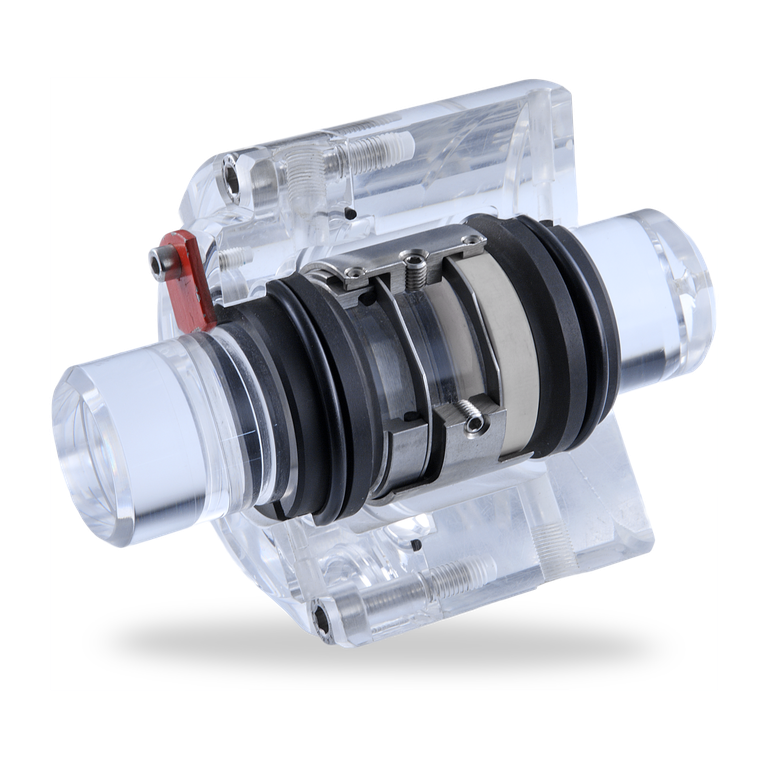

M74-D
M74-D

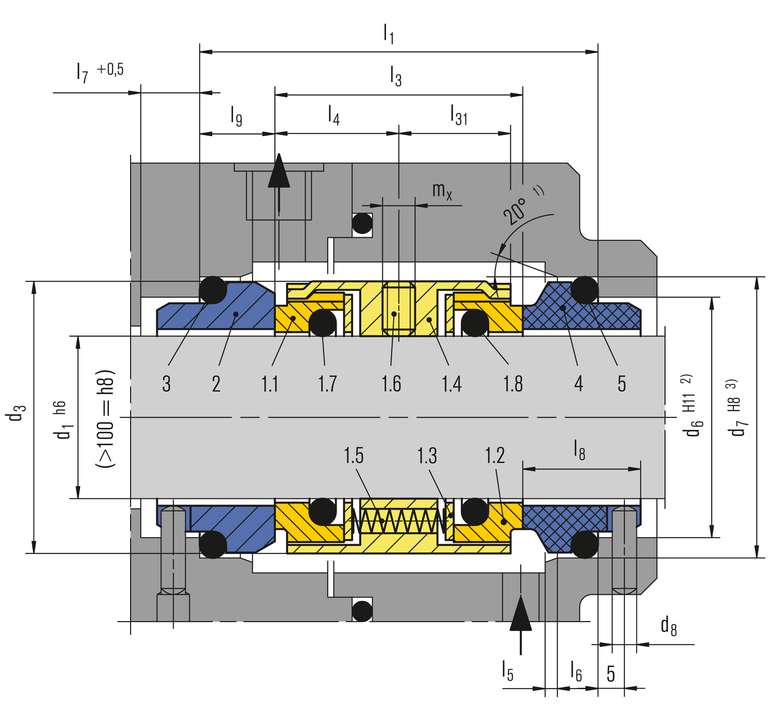

| Item | Part no. to DIN 24250 |
Description |
| 1.1 | 472.1 | Seal face |
| 1.2 | 472.2 | Seal face |
| 1.3 | 474 | Thrust ring |
| 1.4 | 485 | Drive collar |
| 1.5 | 477 | Spring |
| 1.6 | 904 | Set screw |
| 1.7 | 412.1 | O-Ring |
| 1.8 | 412.2 | O-Ring |
| 2 | 475.1 | Seat (G9) |
| 3 | 412.3 | O-Ring |
| 4 | 475.2 | Seat (G9) |
| 5 | 412.4 | O-Ring |
1) d1 > 100 mm: 30°
2) d1 > 100 mm: +0.1
3) d1 > 100 mm: H7
M74-D
Features
- For plain shafts
- Dual seal
- Unbalanced
- Rotating multiple springs
- Independent of direction of rotation
- Seal concept based on the M7 range
- Variant with pumping screw available (M74F-D)
Advantages
- Efficient stock keeping due to easily interchangeable faces
- Extended selection of materials
- Flexibility in torque transmissions
- EN 12756 (For connection dimensions d1 up to 100 mm (3.94"))
Materials
Seal face: Silicon carbide (Q1)
Seat G9: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1)
Seat G4, G6 (Q1, Q2), Seat G13 (A, B)
Secondary seals: EPDM (E), FKM (V), FFKM (K)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G), Duplex (G1)
Seat G9: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1)
Seat G4, G6 (Q1, Q2), Seat G13 (A, B)
Secondary seals: EPDM (E), FKM (V), FFKM (K)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G), Duplex (G1)
Standards and approvals
- EN 12756
Recommended applications
- Chemical industry
- Process industry
- Pulp and paper industry
- Low solids content and low abrasive media
- Toxic and hazardous media
- Media with poor lubrication properties
- Adhesives
Product variants

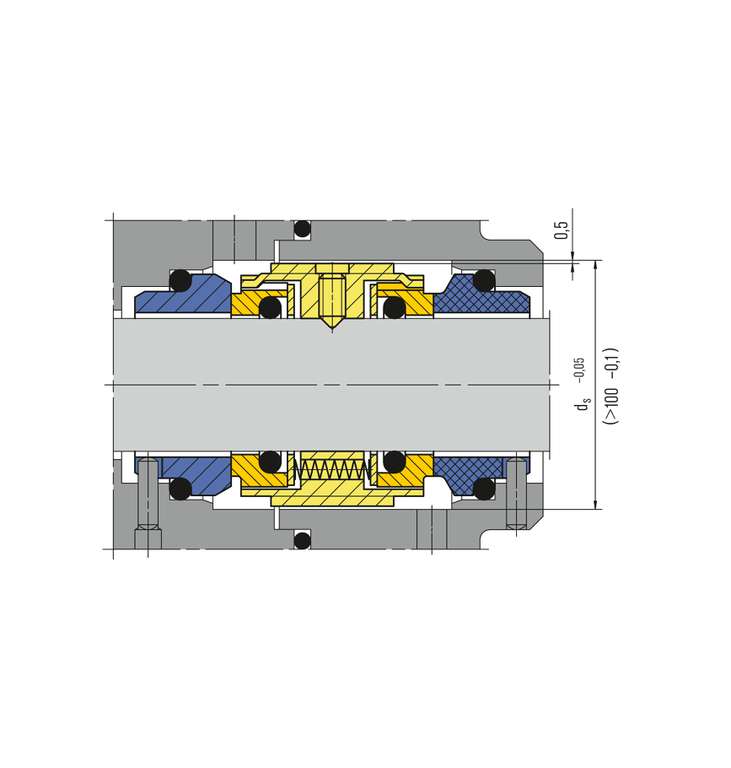

M74F-D
Dimensions, items and descriptions as for M74-D, but with pumping screw.
Dependent on direction of rotation. Viscosity ≤ ISO VG10).
Dimensions, items and descriptions as for M74-D, but with pumping screw.
Dependent on direction of rotation. Viscosity ≤ ISO VG10).
