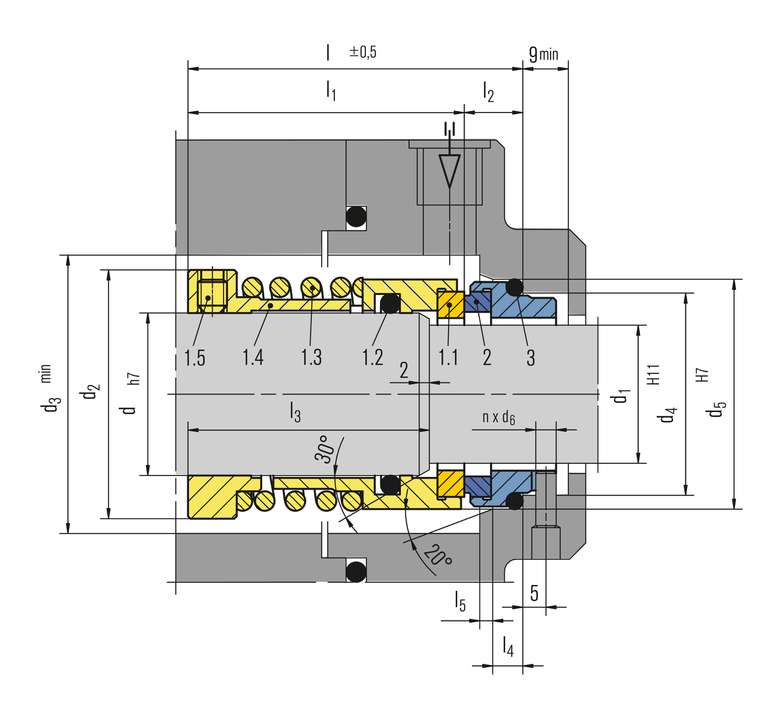

| Item | Description |
| 1.1 | Seal face |
| 1.2 | O-Ring |
| 1.3 | Spring |
| 1.4 | Drive collar |
| 1.5 | Set screw |
| 2 | Seat |
| 3 | O-Ring |

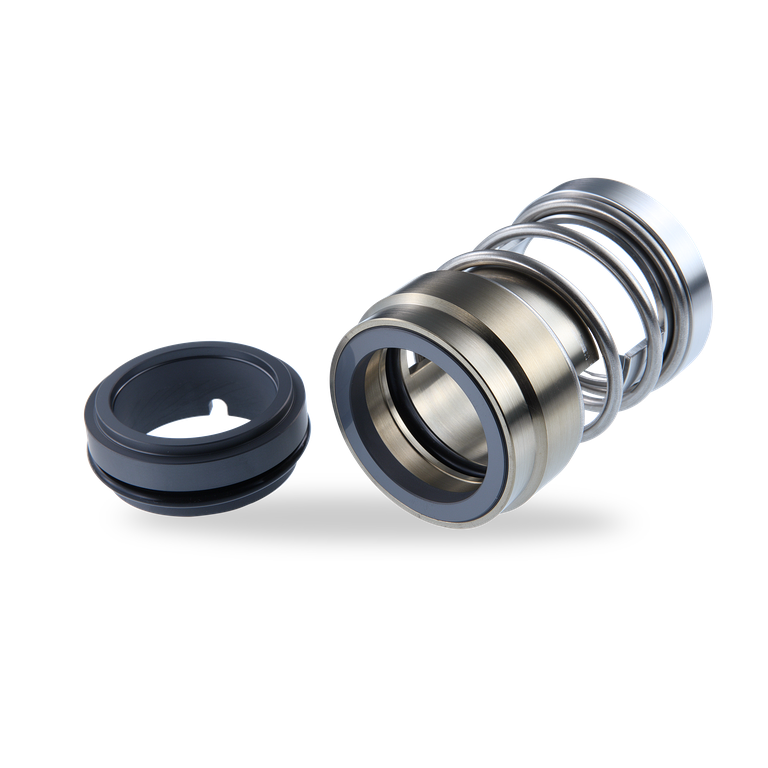

H3B
Features
- Single Seal
- Balanced
- Independent of direction of rotation
Advantages
Excellent torque transmission due to clutch drive between seal head and drive collar.
Operating range
Pressure: p = 12 bar (174 PSI)
Temperature:
t = -20 °C … +160 °C (-4 °F … 320 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 300 mPa·s
Solids content: … 7 %
Temperature:
t = -20 °C … +160 °C (-4 °F … 320 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 300 mPa·s
Solids content: … 7 %
Materials
Seal face and seat: Silicon carbide (Q1), Tungsten carbide (U7)
Secondary seals: FKM (V)
Metal parts: CrNiMo steel (G)
Secondary seals: FKM (V)
Metal parts: CrNiMo steel (G)
Standards and approvals
- ISO 3096
Recommended applications
- Process industry
- Oil and gas industry
- High viscous media (tar, heavy oils)
- Process pumps
Similar products
AX25
- External configuration
- Balanced
- Independent of direction of rotation
- Independent of pressure direction
AX25D
- Dual seal
- Balanced
- Independent of direction of rotation
- Independent of pressure direction
AX30
- Unbalanced
- Dependent on direction of rotation
- Solid seats
