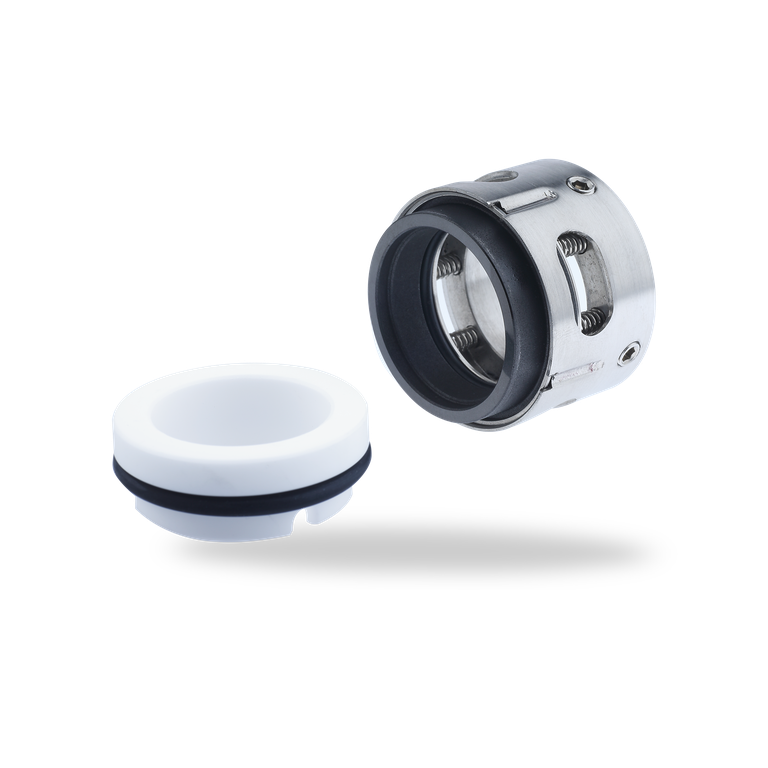

BT-C5
BT-C5
BT-C5.KU

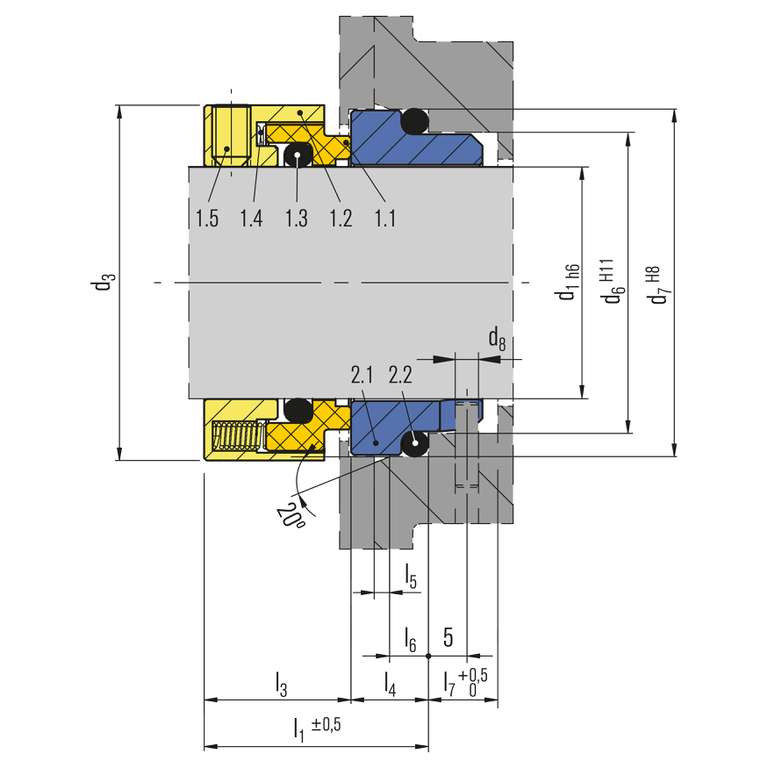

| Item | Description |
| 1.1 | Seal face |
| 1.2 | Collar |
| 1.3 | O-Ring |
| 1.4 | Spring |
| 1.5 | Set screw |
| 2.1 | Stationary seat |
| 2.2 | O-ring |
BT-C5
Features
- Single seal
- For plain shafts
- Unbalanced
- Multiple springs, rotating
- Independent of direction of rotation
Advantages
- Designed for external mounting
- Positive torque transmission between seal face and drive collar
- For high viscosity media
- Insensitive to low solid content
Materials
Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), PTFE
reinforced (Y1), Tungsten Carbide (U), Silicon Carbide (Q1)
Seat: CrNiMo steel (G), Al-Oxide (V), Tungsten Carbide (U), Silicon Carbide (Q1)
Elastomers:
NBR (P), EPDM (E), FKM (V), FFKM (K)
Metal parts: CrNiMo steel (G)
Seat: CrNiMo steel (G), Al-Oxide (V), Tungsten Carbide (U), Silicon Carbide (Q1)
Elastomers:
NBR (P), EPDM (E), FKM (V), FFKM (K)
Metal parts: CrNiMo steel (G)
Standards and approvals
Various material approvals e.g. WRAS, UBA, ACS, NSF, FDA available (depending on type and material combinations). Please inquire!
Recommended applications
- Water and wastewater technology
- Chemical industry
- Process industry
- Food and beverage industry
- Low solid content media
- Gear pumps
- Lobe pumps
- Centrifugal pumps
Notes
Assembly aid (seat plate and fixing screws) not supplied with the mechanical seal, but available.
