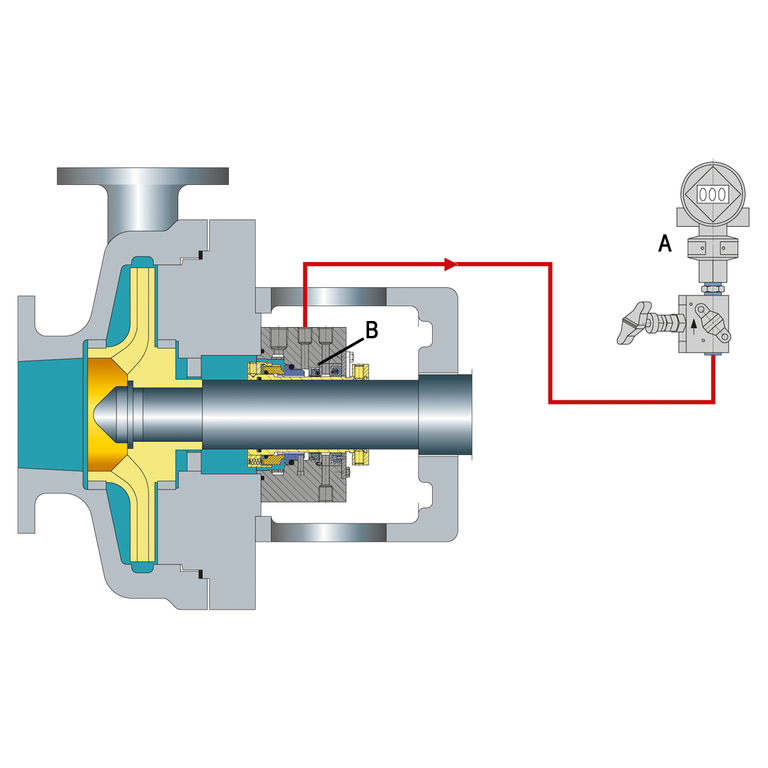

API Plan 66A

API Plan 66A

Throttle bushings in the seal gland minimize the seal leakage leaving the seal gland and allow for detection of a seal failure by an alarm of the monitoring pressure transmitter.

A  Pressure transmitter
B  Segmented bushing

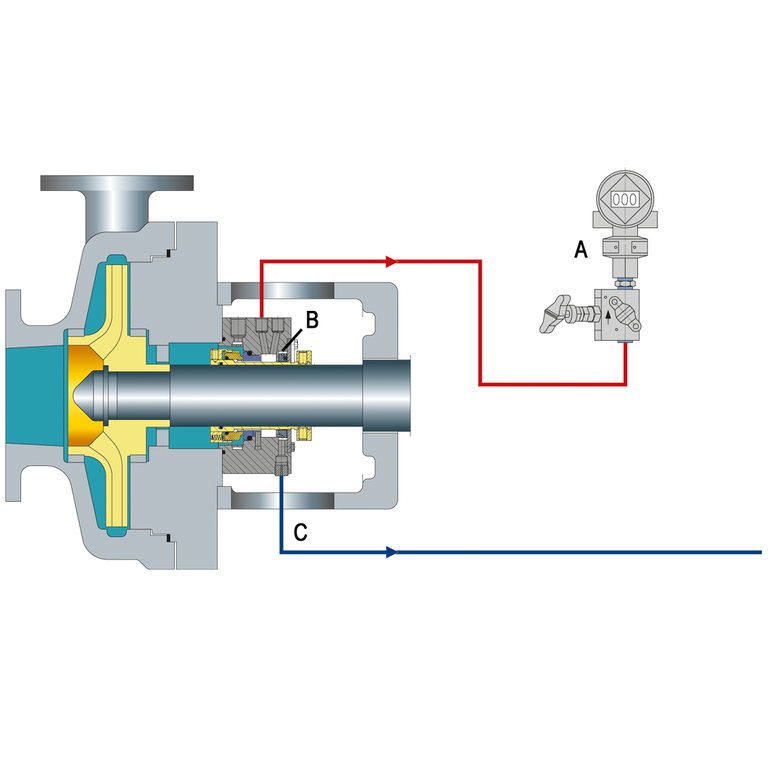

API Plan 66B

API Plan 66B

An orifice plug in the drain port minimizes the seal leakage leaving the seal gland and allows for detection of a seal failure by an alarm of the monitoring pressure transmitter.

A  Pressure transmitter
B  Segmented bushing
C  Orifice plug drain

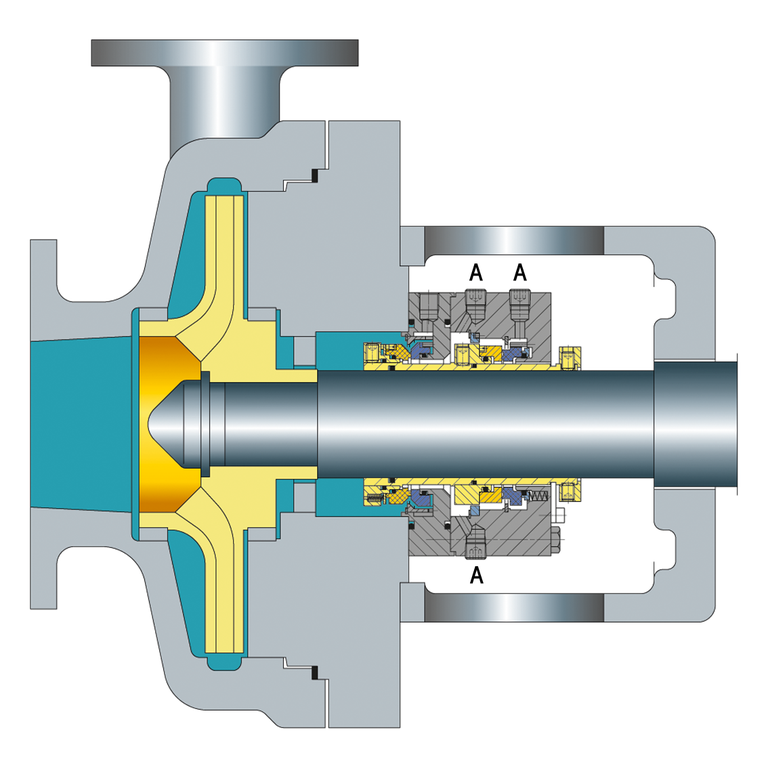

API Plan 71

Plan 71

Tapped connections for the purchaser’s use e.g., for future use of buffer gas.

A  Connection plugged

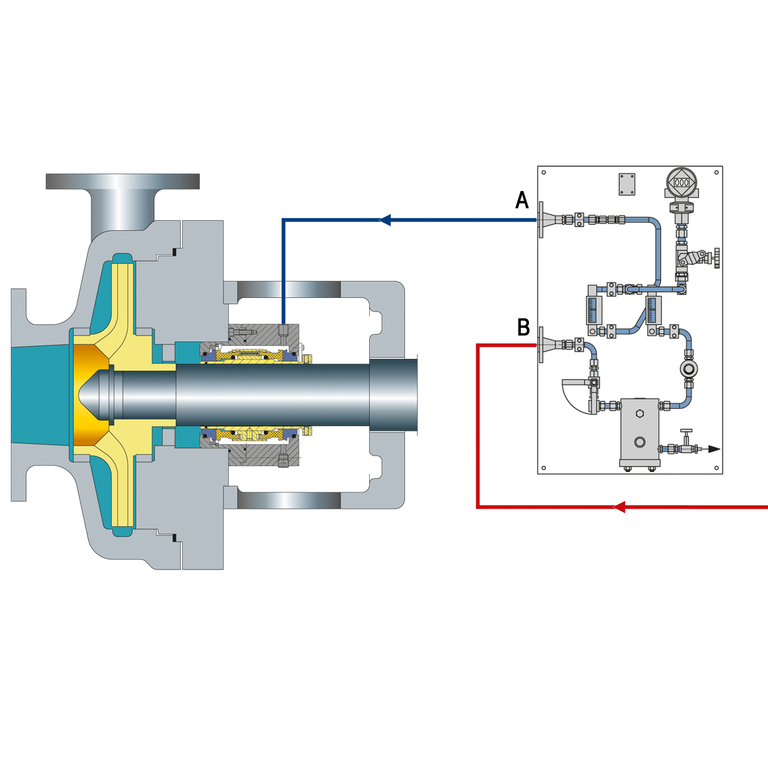

API Plan 72

API Plan 72

Externally supplied buffer gas for arrangement 2 unpressurized seals with a dry running containment seal. Buffer gas is maintained at a pressure less than seal chamber pressure.

A  Gas OUT
B  Gas IN

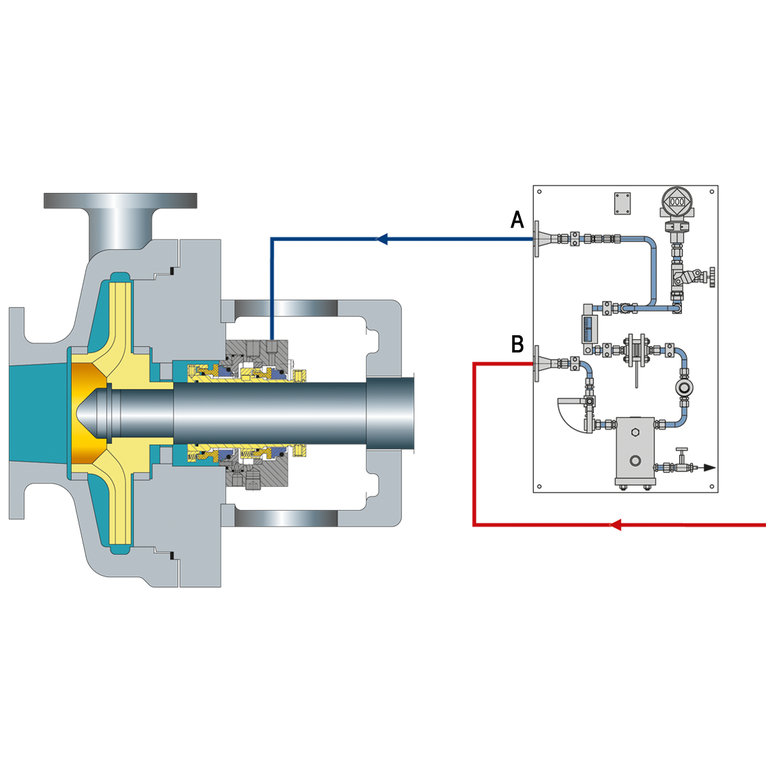

API Plan 74

API Plan 74

Externally supplied barrier gas for arrangement 3 dual pressurized non-contacting gas seals.

A  Gas OUT
B  Gas IN

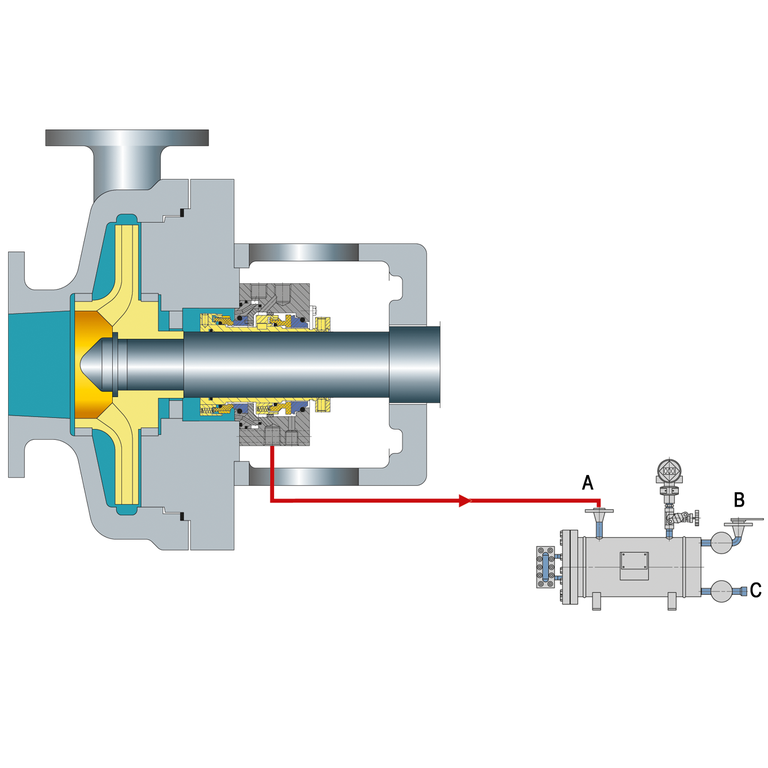

API Plan 75

API Plan 75

A containment seal chamber leakage collection system for condensing or mixed phase leakage on arrangement 2 unpressurized seals with containment seals.

A  From mechanical seal
B  To vapor collection system
C  Drain

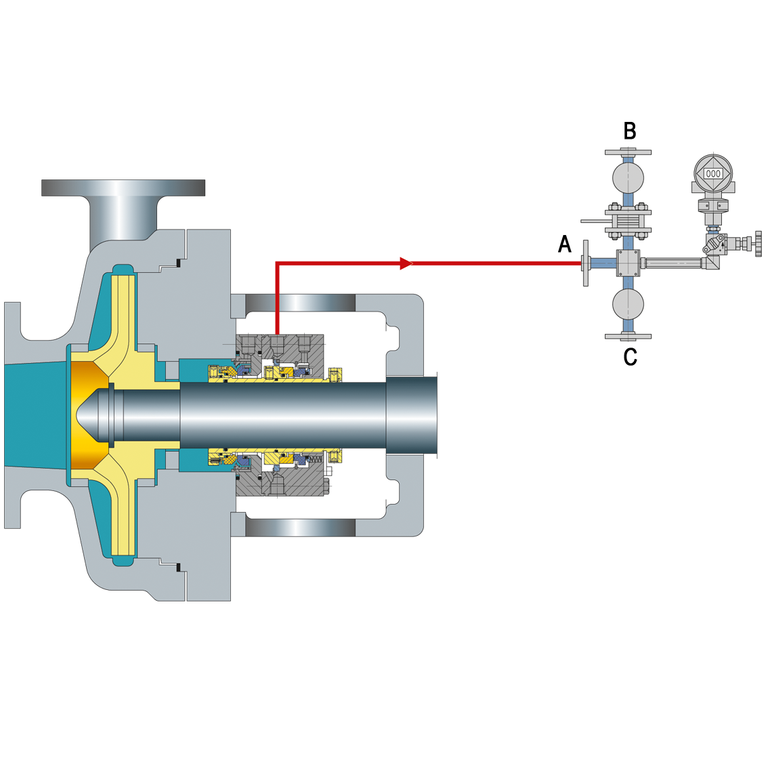

API Plan 76

API Plan 76

A containment seal chamber drain for non-condensing leakage on arrangement 2 unpressurized seals with containment seals. Used if the pumped fluid does not condense at ambient temperatures.

A  From mechanical seal
B  To vapor collection system
C  Drain

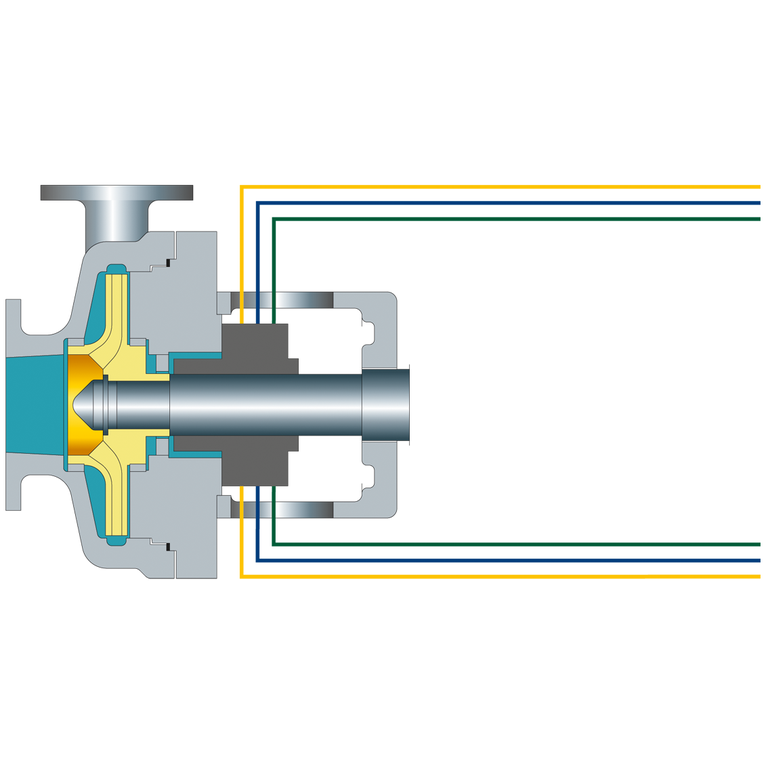

API Plan 99

API Plan 99

Engineered piping plan not defined by other existing plans.
