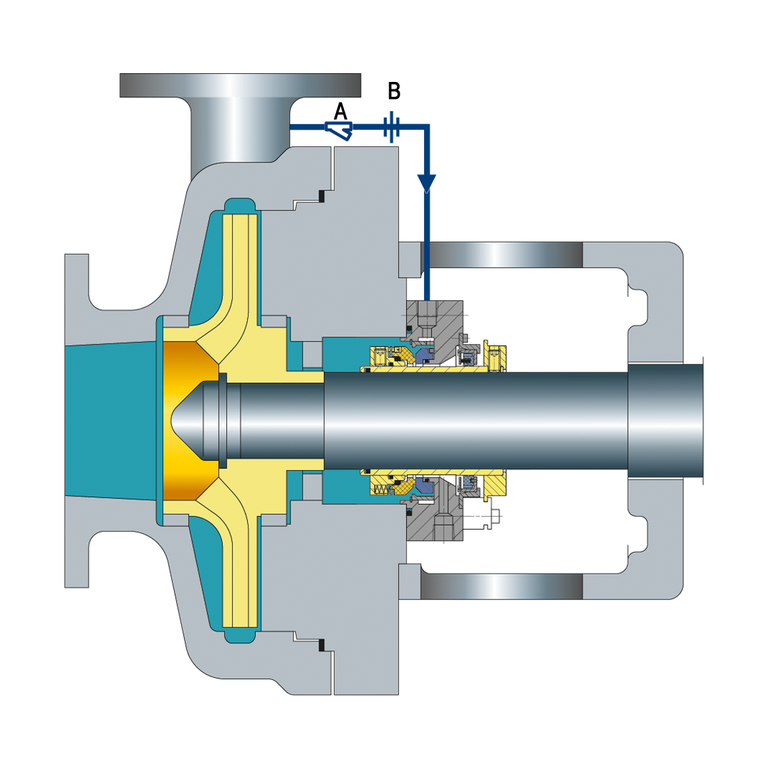

API Plan 12

API Plan 12

Recirculation from the pump discharge through a strainer and a flow control orifice into the seal chamber.

A  Strainer
B  Flow control orifice

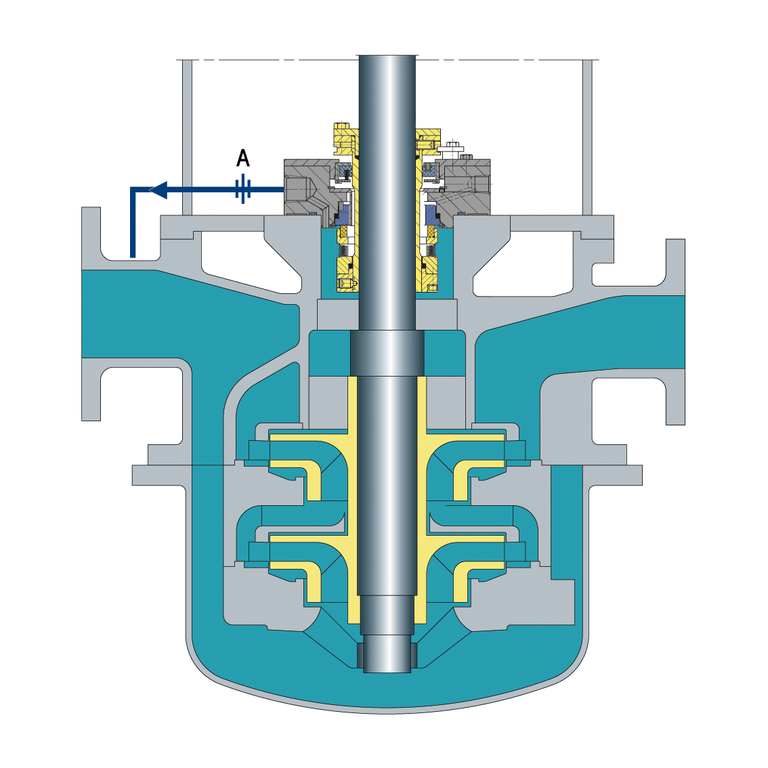

API Plan 13

API Plan 13

Recirculation from the seal chamber through a flow control orifice and back to the pump suction or pump suction piping.

A  Flow control orifice


API Plan 14

API Plan 14

Recirculation from pump discharge through a flow control orifice to the seal and simultaneously from the seal chamber through a flow control orifice to pump suction.

A  Flow control orifice


API Plan 21

API Plan 21

Recirculation from pump discharge through a flow control orifice and cooler into the seal chamber.

A  Flow control orifice
B  Cooler
C  Temperature indicator

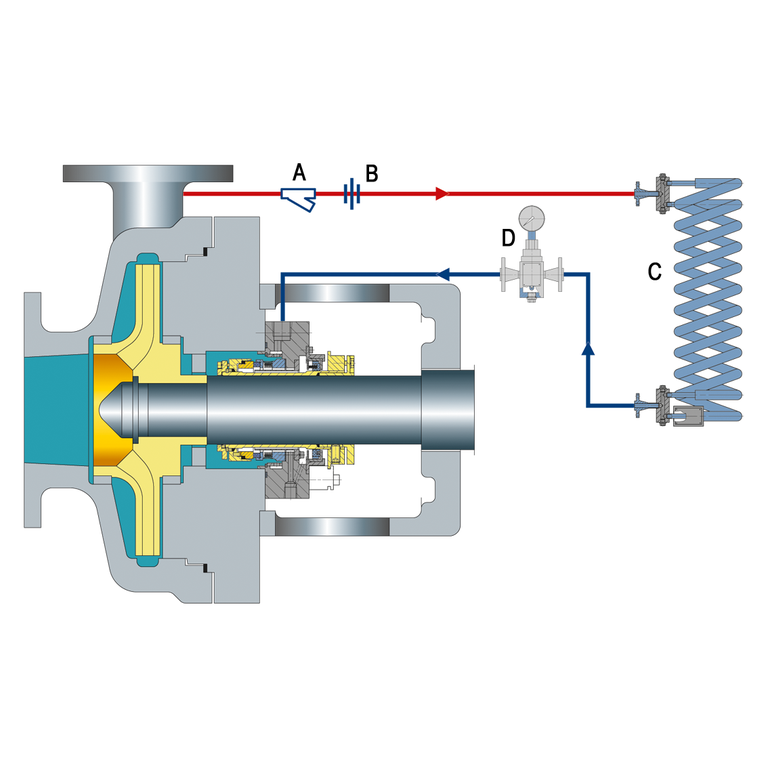

API Plan 22

API Plan 22

Recirculation from pump discharge through a strainer, a flow control orifice and a cooler into the seal chamber.

A  Strainer
B  Flow control orifice
C  Cooler
D  Temperature indicator

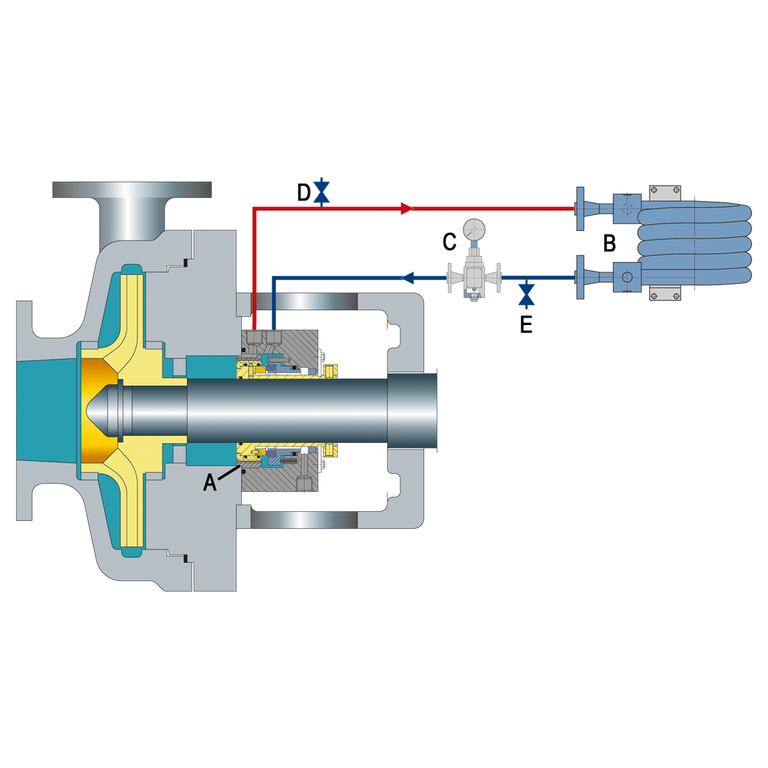

API Plan 23

API Plan 23

Recirculation from a circulation device in the seal chamber through a cooler and back into the seal chamber.

A  Circulation device
B  Cooler
C  Temperature indicator
D  Vent
E  Drain

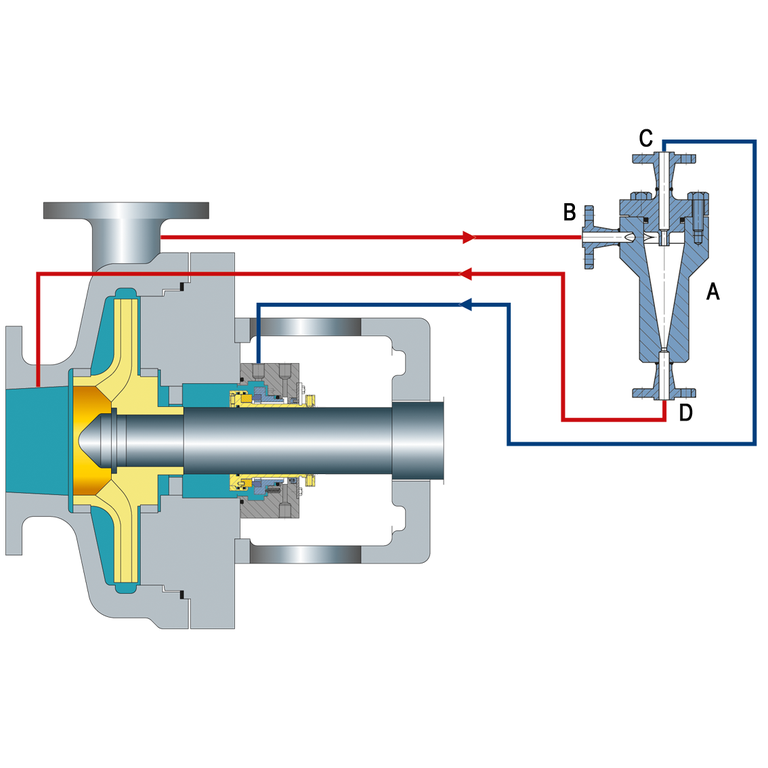

API Plan 31

API Plan 31

Recirculation from the pump discharge through a cyclone separator delivering the clean fluid to the seal chamber. The solids are delivered to the pump suction line.

A  Cyclone separator
B  Contaminated liquid IN
C  Clean liquid OUT
D  Separated liquid OUT

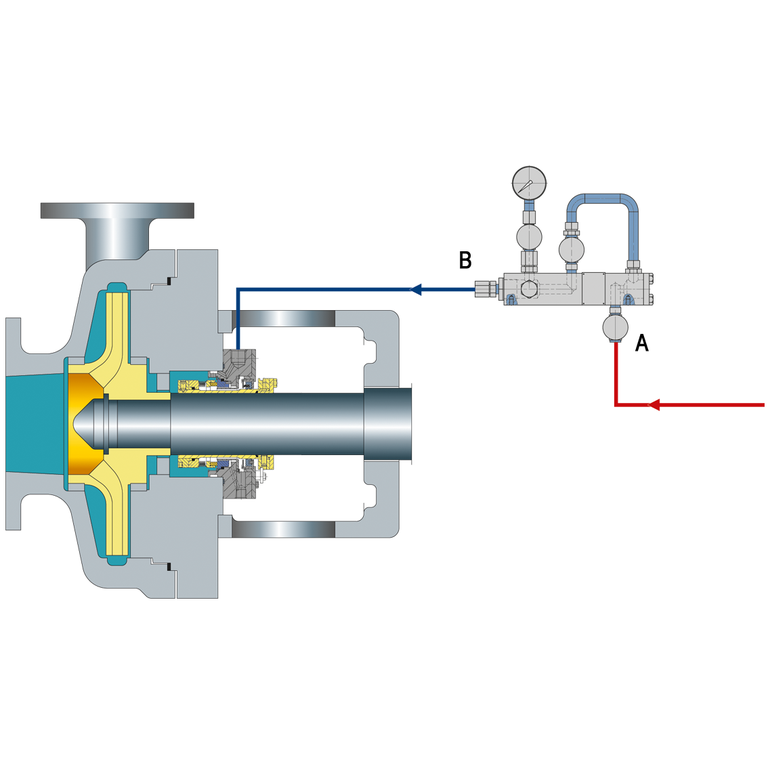

API Plan 32

API Plan 32

Injection of clean fluid into the seal chamber from an external source.

A  From external source
B  To seal

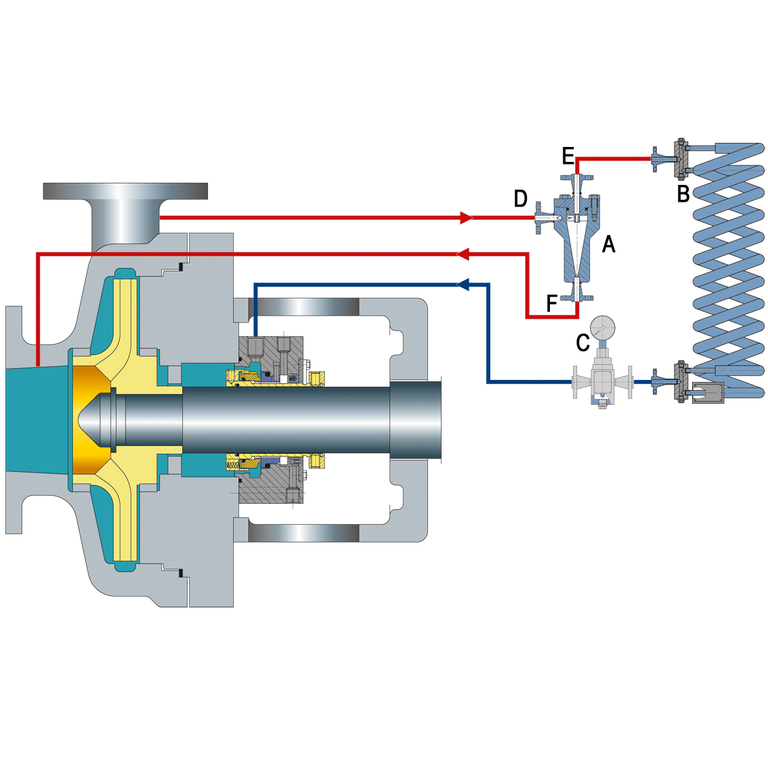

API Plan 41

API Plan 41

Recirculation from the pump discharge through a cyclone separator delivering the clean fluid to a cooler and then to the seal chamber. The solids are delivered to the pump suction line.

A  Cyclone separator
B  Cooler
C  Temperature indicator
D  Contaminated liquid IN
E  Clean liquid OUT
F  Separated liquid OUT

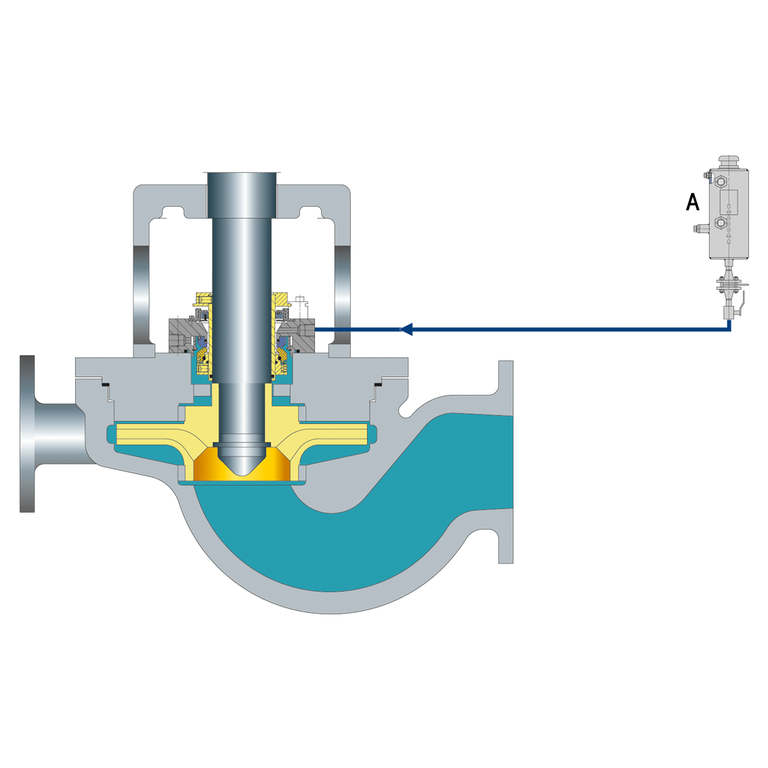

API Plan 51

API Plan 51

Reservoir providing a dead-ended blanket for fluid to the quench connection of the gland plate. Only recommended for vertical pumps.

A  Reservoir
